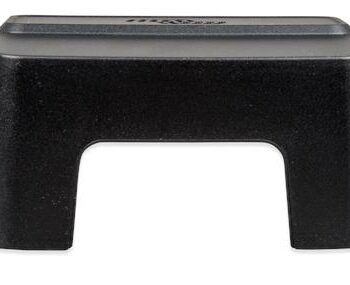

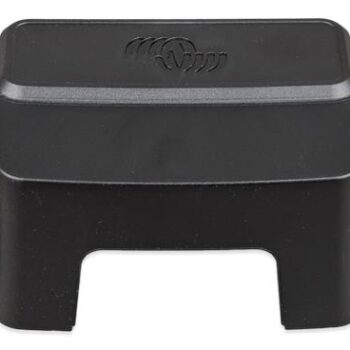

Victrons dual power distribution post is designed to connect electrical power runs, distribute power to separate locations, and to condense ground leads to a central location. They are rated up to 150 amps and can handle up to 70VDC.
Dual terminal stud M8 (5/16³)
- Max.current: 150A
- Max. Voltage70: VDC
- Terminal diameter: M8 (5/16 inch)
- Terminal height: 17mm/ 0.67 inch
- Terminal material: Stainless steel
- Hex nut material: Stainless steel
- Recommended torque: 10 N-m/ 90lbf-inch
- Busbarstrip material: Tin-platedcopper(1.0x 13mm)
- Base material: Glass fiber reinforced nylon
| Brand | Victron Energy |
|---|---|
| Manufacturer Part Number | VBB413020010 |
| GTIN | 8.72E+12 |
| Dimensions | H45 x W43 x D32mm |
| Weight | 0.13Kg |
| Warranty | 5 Years |
| Country of Manufacture | China |
